Now that you've got your whole genome sequencing data, what do you do with it? This article covers using a common tool known as WGS Extract.
https://madelinemiller.dev/blog/whole-genome-sequencing-wgsextract/This post is the second in a series about Whole Genome Sequencing, or WGS. The first article on choosing a whole genome sequencing provider and a quick primer on what it actually is can be found here.
If you’ve recently gotten a whole genome sequencing done and aren’t sure what to do with the giant files you’ve been given, this is a great place to start. This article goes into using a tool known as WGS Extract to convert between various formats, get some basic information about your genetic data, and export new data files to use with various platforms.
Downloading WGS Extract
WGS Extract can be found on their website, at the time of writing I’d recommend installing the v4 Beta to get the new features in the v4 release but without having to deal with the instability of the alpha or developer channels. If a more stable release channel of WGS Extract v4 is now available on the site, you should likely use that over the beta.
Installation of the program is as simple as extracting it, running the install script for your OS, and then running the WGSExtract script to run the program once it’s installed. For a more in-depth guide on installation, you can consult the WGS Extract manual.
Running WGS Extract
Image transcript / description
Visible text
WGS Extract
WGS Extract
Dev 4.44.9 (23Sep2024)
WGSE Manual
Exit WGSE
Settings
Extract Data
Analyze
Settings
Output Directory: out
Reference Library
Default
Temporary Files
Default
Language: English
NIH
debugON
BAM / CRAM File
Filename: Select BAM/CRAM file
Reference Genome:
Map Avg Read Depth:
Bio Gender:
File Content:
File Stats:
Statistics and Attributes:
Stats
HeaderDescription
A desktop application window titled “WGS Extract” is shown with a dark purple title bar and standard window controls in the top-right. Near the top center is a large banner with a teal DNA helix graphic on the left and the bold text “WGS Extract,” followed by the version line “Dev 4.44.9 (23Sep2024)” and two rectangular buttons labeled “WGSE Manual” and “Exit WGSE.” Below the banner is a tab row with “Settings” selected, alongside “Extract Data” and “Analyze.” The main panel contains a “Settings” section with labeled fields for output directory (showing “out”), reference library (Default), temporary files (Default), and language (English), plus small buttons labeled “NIH” and “debugON” on the right. A second boxed section titled “BAM / CRAM File” includes a “Select BAM/CRAM file” button and several empty informational lines (reference genome, read depth, bio gender, file content, file stats), with “Stats” and “Header” buttons at the bottom.

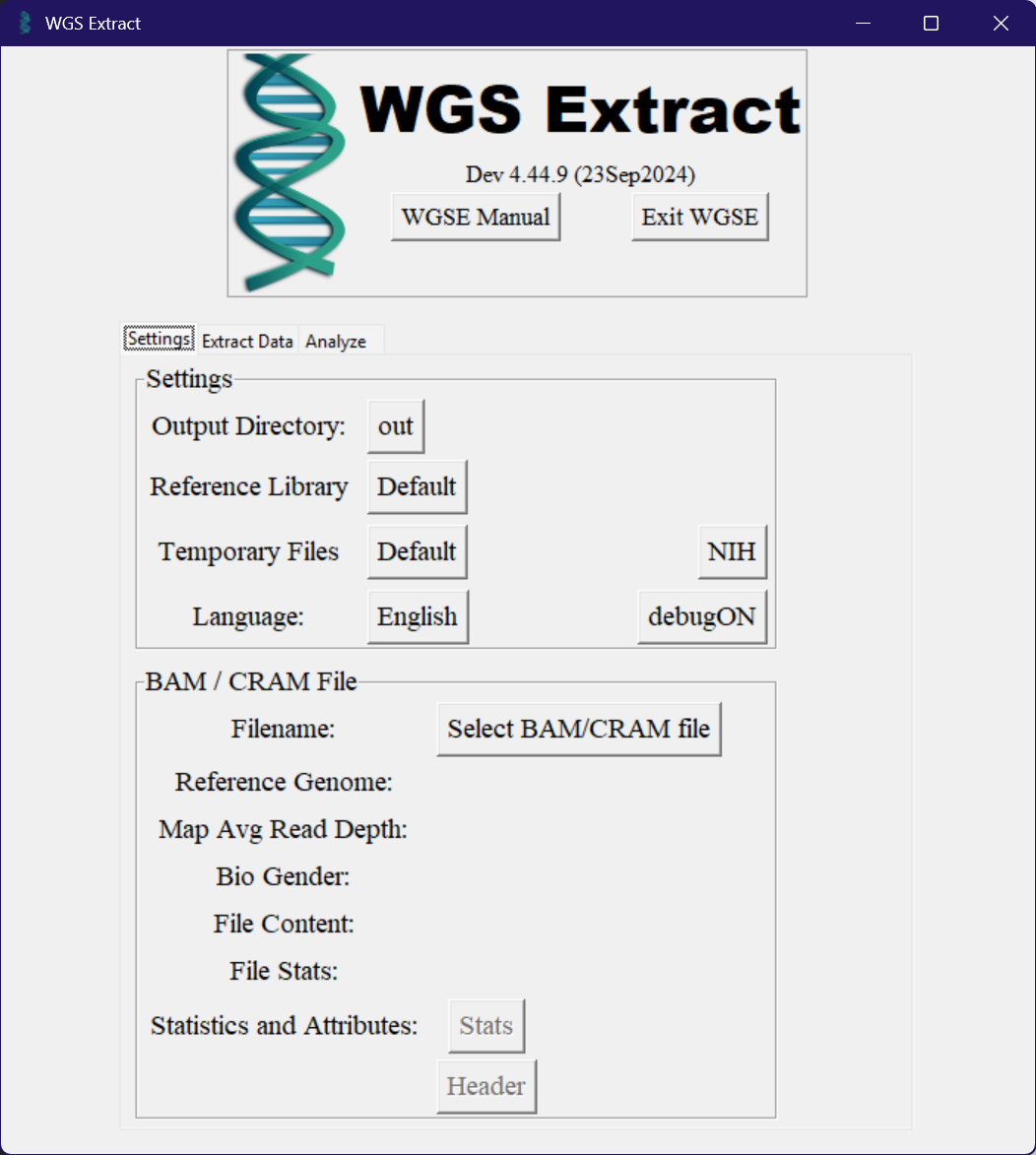

When you first open up the application, you should see something like this. The version you’re using will probably be different (hopefully newer), but other than that it should look mostly the same. First up, you want to make sure to select an output directory that WGS Extract will put any created or converted files into, using the button next to the “Output Directory” label in settings. Given the size of genetic data and the fact that temporary files might need to be created depending on the task you’re performing, it’s recommended to have a few hundred gigabytes of space available.
The next step you take is going to depend on what file type your genetic data is in. If you’ve got it in BAM or CRAM format you can use the “Select BAM/CRAM file” button to load the file, but if it’s something else it’ll require some level of conversion.
Starting from FASTQ files

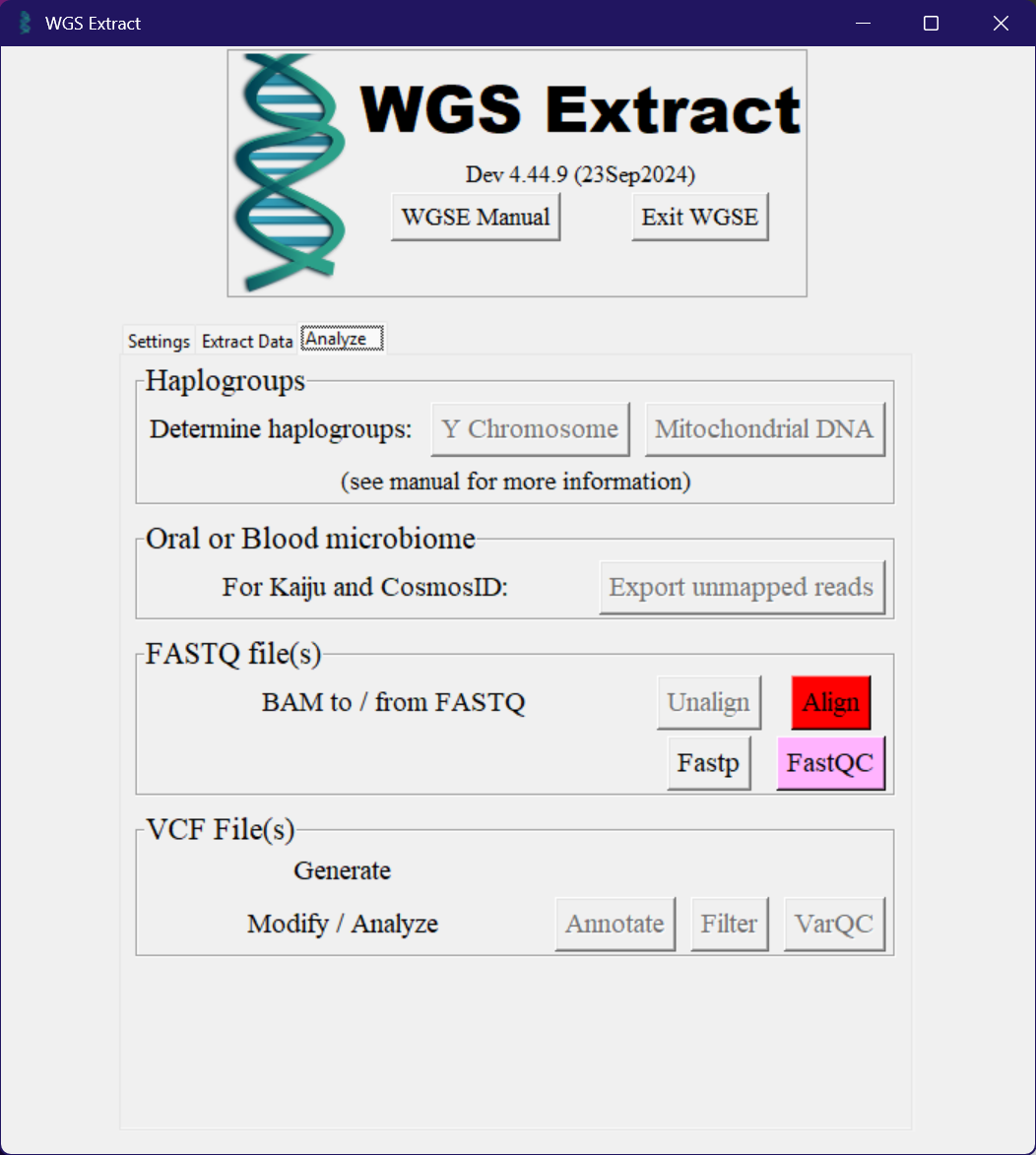

If your genetic data came in the form of FASTQ files, you can use WGS Extract to create a new BAM file from your FASTQ files. To do this, click the “Analyze” tab within WGS Extract, and press the red “Align” button found in the “FASTQ file(s)” section.
Image transcript / description
Visible text
WGS Extract
WGS Extract
Dev 4.44.9 (23Sep2024)
WGSE Manual
Exit WGSE
Settings
Extract Data
Analyze
Haplogroups
Determine haplogroups:
Y Chromosome
Mitochondrial DNA
(see manual for more information)
Oral or Blood microbiome
For Kaiju and CosmosID:
Export unmapped reads
FASTQ file(s)
BAM to / from FASTQ
Unalign
Align
Fastp
FastQC
VCF File(s)
Generate
Modify / Analyze
Annotate
Filter
VarQCDescription
A desktop application window titled “WGS Extract” shows the Analyze tab selected among three tabs (Settings, Extract Data, Analyze). At the top is a large banner with a teal DNA helix graphic and the title “WGS Extract,” followed by the version line “Dev 4.44.9 (23Sep2024)” and two rectangular buttons: “WGSE Manual” and “Exit WGSE.” Below, the Analyze page is divided into boxed sections with headings: Haplogroups (buttons for “Y Chromosome” and “Mitochondrial DNA”), Oral or Blood microbiome (a button labeled “Export unmapped reads”), FASTQ file(s) (buttons “Unalign,” a bright red “Align,” “Fastp,” and a purple “FastQC”), and VCF File(s) (buttons “Annotate,” “Filter,” and “VarQC”). The interface uses a light gray background with thin gray borders around each section and standard sans-serif UI text.
This process might take a fairly long time, so it’s a good idea to start this when you’re able to leave your computer running for potentially hours depending on the speed of your computer.
What this information means

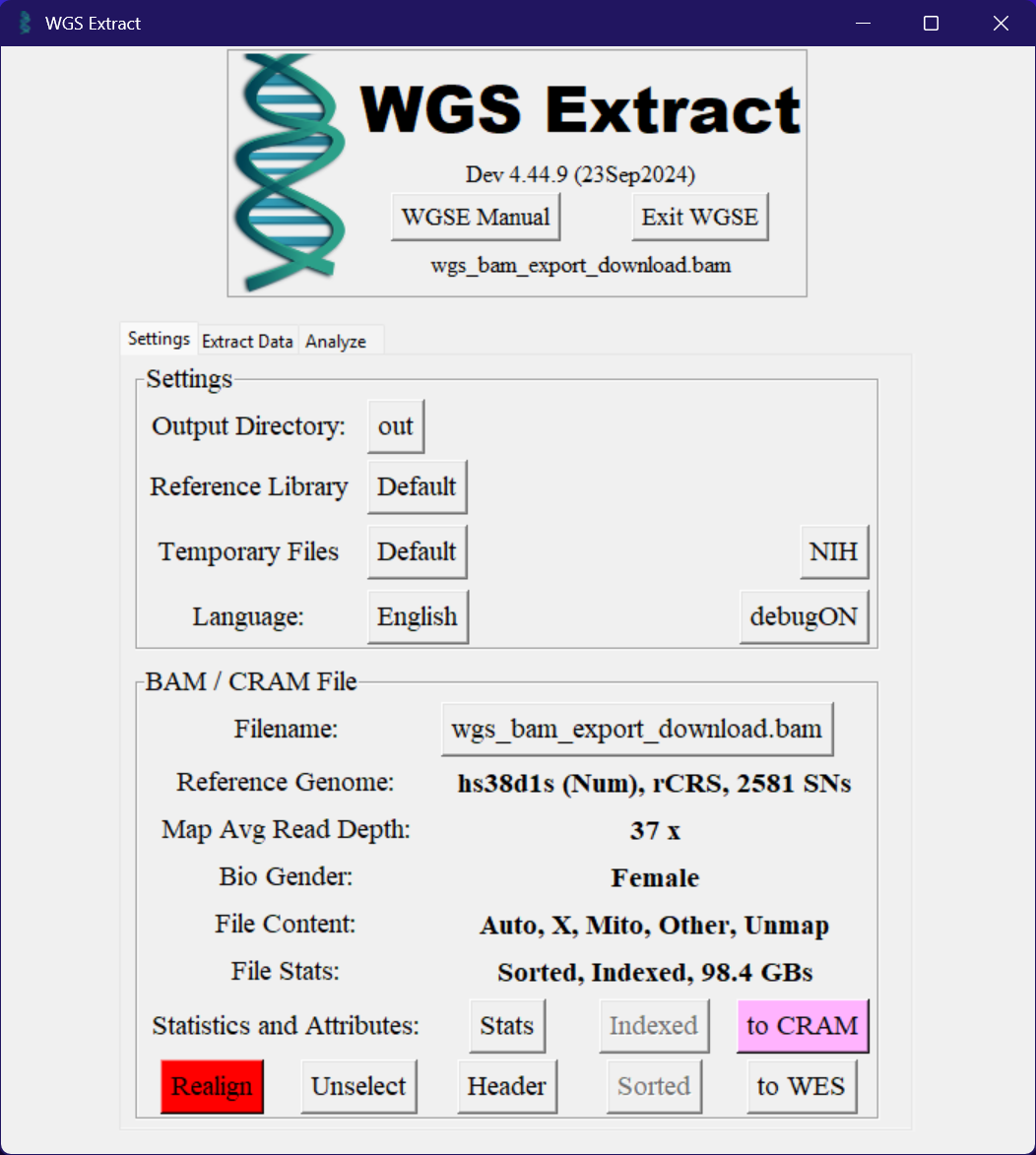

Ideally, if you've done everything correctly you should now have WGS Extract open with a BAM or CRAM file loaded with your genetic data. If everything has gone well, it should look something like this.
Image transcript / description
Visible text
WGS Extract
WGS Extract
Dev 4.44.9 (23Sep2024)
WGSE Manual
Exit WGSE
wgs_bam_export_download.bam
Settings
Extract Data
Analyze
Settings
Output Directory: out
Reference Library
Default
Temporary Files
Default
Language: English
NIH
debugON
BAM / CRAM File
Filename: wgs_bam_export_download.bam
Reference Genome: hs38d1s (Num), rCRS, 2581 SNs
Map Avg Read Depth: 37 x
Bio Gender: Female
File Content: Auto, X, Mito, Other, Unmap
File Stats: Sorted, Indexed, 98.4 GBs
Statistics and Attributes:
Stats
Indexed
to CRAM
Realign
Unselect
Header
Sorted
to WESDescription
A desktop application window titled “WGS Extract” shows a large banner at the top with a teal DNA helix graphic on the left and the bold title “WGS Extract” on the right, followed by the version line “Dev 4.44.9 (23Sep2024).” Two rectangular buttons (“WGSE Manual” and “Exit WGSE”) sit beneath the banner, and the loaded file name “wgs_bam_export_download.bam” is displayed below them. The main area has three tabs (“Settings,” “Extract Data,” “Analyze”) with the Settings tab selected, showing fields for Output Directory (set to “out”), Reference Library (Default), Temporary Files (Default), and Language (English), plus small buttons labeled “NIH” and “debugON” on the right. A lower panel titled “BAM / CRAM File” lists details of the loaded BAM file, including reference genome “hs38d1s (Num), rCRS, 2581 SNs,” average read depth “37 x,” bio gender “Female,” file content categories, and file stats “Sorted, Indexed, 98.4 GBs.” Along the bottom of this panel are action buttons, including a red “Realign” button, grey buttons (“Unselect,” “Header,” “Stats,” “Indexed,” “Sorted,” “to WES”), and a purple “to CRAM” button.
Here you can see some basic information about your genetic data, such as the reference genome used, the average read depth, the genetic sex of the sample, and what data is actually present in the file.
Reference Genome
As you can see from the above image of my sample, it was sequenced using the "hs38d1s" reference genome. For the purposes of the article this does not currently matter, but when attempting to use your genetic data directly with other platforms it's important to know what reference genome was used. Otherwise, the platform could be trying to do the equivalent of reading a book as if it's in English when it's actually written in French.
Average Read Depth
The next line shows the average read depth of the sample. With the way genetic sequencing is performed, it's not possible to perfectly read the whole thing precisely. So instead they perform a bunch of reads, up until the point where they should have read every part of the genome on average a certain number of times. The package I personally paid for was for 30x coverage, so the average read depth of my sample should be at least 30. This will vary between samples, even when they're sequenced at the same coverage level.
You can press the "Stats" button to get a more detailed breakdown of the average read depth for each individual chromosome. Generally this will be relatively close to the overall average read depth, with a notable exception being the mitochondrial DNA which will likely have a significantly higher read depth than the rest. Each cell contains a massive number of mitochondria, meaning the genome reading ends up covering it a very large number of times. The mitochondria isn't just the powerhouse of the cell, it's a whole industrial district.
File Content
The file content line shows what parts of the genome are present in the file. In the case of my sample, it has the autosomes (chromosomes 1-22), the X chromosome, and the mitochondrial DNA. If you're missing any of these, it's possible that the sequencing didn't work properly or that the data was lost at some point. Or alternatively, that the service you used didn't sequence those parts of the genome. If your DNA sample contains a Y chromosome, it should also be listed here.
Alongside these expected parts of the genome, you'll also notice there's an "Other" section and an "Unmapped" section. The "Other" section refers to any other DNA that was present in the sample that wasn't human, and the "Unmapped" section refers to any reads that didn't match against the reference genome. My sample was specifically of a buccal swab, so it will include the DNA of the various bacteria that was present in my mouth at the time. There are also a few viruses that latch themselves onto your DNA, which can also be present here. For example if you've ever been infected with the Epstein-Barr virus, it's possible that some of its DNA is still present in your cells and therefore the sequenced genome. The "Unmapped" section is generally very small, and is usually very low quality reads that couldn't be matched to the reference genome. Different reference genomes will have different amounts of unmapped reads, but in general they're not worth worrying about.
Haplogrouping
One of the functions that you can perform right from within WGS Extract, is determining your haplogroup. This is basically a code that refers to a specific branch of a human-wide family tree, finding common ancient ancestors. Others who share the same haplogroup with you aren't people you'd necessarily be related to in the way it's usually meant, but they are people you share a closer common ancestor with than someone who has a different haplogroup.
The haplogroup is generated from DNA which is considered very stable, meaning it doesn't change much between generations. This makes it a good tool to track ancestry over extremely long periods of time. As mitochondrial DNA is always passed exclusively from the mother, it can be used to trace your matrilineal ancestry, and as the Y chromosome is passed exclusively from the father it can be used to trace patrilineal ancestry if you have a Y chromosome. This does mean it has an inherent limitation in that it cannot trace your mother's father for example, or similar relationships higher up in the family tree.
If, like me, your DNA sample doesn't contain a Y chromosome, you won't be able to get your patrilineal haplogroup. If this is something you still want to find out, you can have either a genetically related brother (a half brother with a shared father will work) or your birth father submit a sample. Due to the stability of this DNA, their haplogroup would be the same as yours if you had a Y chromosome.

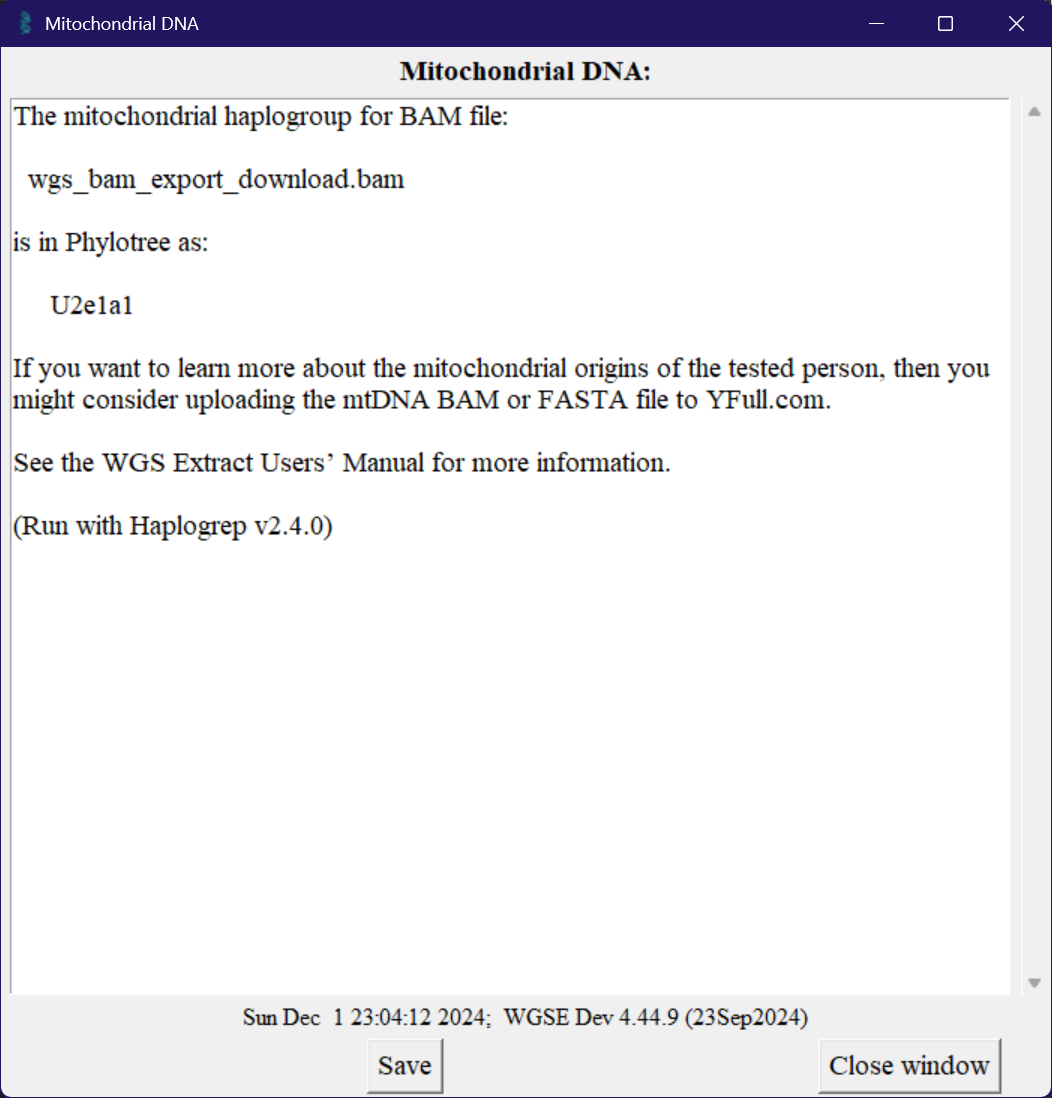

You can run a haplogroup from the "Analyze" tab, by pressing either the "Mitochondrial DNA" or "Y Chromosome" buttons. This will, after a few minutes or so, bring up a window like the one below.
Image transcript / description
Visible text
Mitochondrial DNA
Mitochondrial DNA:
The mitochondrial haplogroup for BAM file: wgs_bam_export_download.bam is in Phylotree as: U2e1a1
If you want to learn more about the mitochondrial origins of the tested person, then you might consider uploading the mtDNA BAM or FASTA file to YFull.com.
See the WGS Extract Users’ Manual for more information.
(Run with Haplogrep v2.4.0)
Sun Dec 1 23:04:12 2024; WGSE Dev 4.44.9 (23Sep2024)
Save
Close windowDescription
A desktop application window titled “Mitochondrial DNA” shows a large white report area with black serif text and a vertical scroll bar on the right. The report states the mitochondrial haplogroup result for the BAM file “wgs_bam_export_download.bam,” listing the Phylotree assignment as “U2e1a1,” followed by guidance to upload an mtDNA BAM or FASTA file to YFull.com and a note to consult the WGS Extract Users’ Manual. Near the bottom of the report is a parenthetical line indicating it was run with “Haplogrep v2.4.0,” and a footer line shows a timestamp and version: “Sun Dec 1 23:04:12 2024; WGSE Dev 4.44.9 (23Sep2024).” Two rectangular buttons sit along the bottom edge: “Save” near the center-left and “Close window” on the right. The title bar is a dark purple-blue with standard window controls in the top-right corner.
You can enter this haplogroup into various websites, such as YFull, or even just google it to see what discussions or research papers you can find. Because of how ancient these are, there are generally studies around population distribution and migration between continents of the ancestors of the haplogroup.
Exporting Data

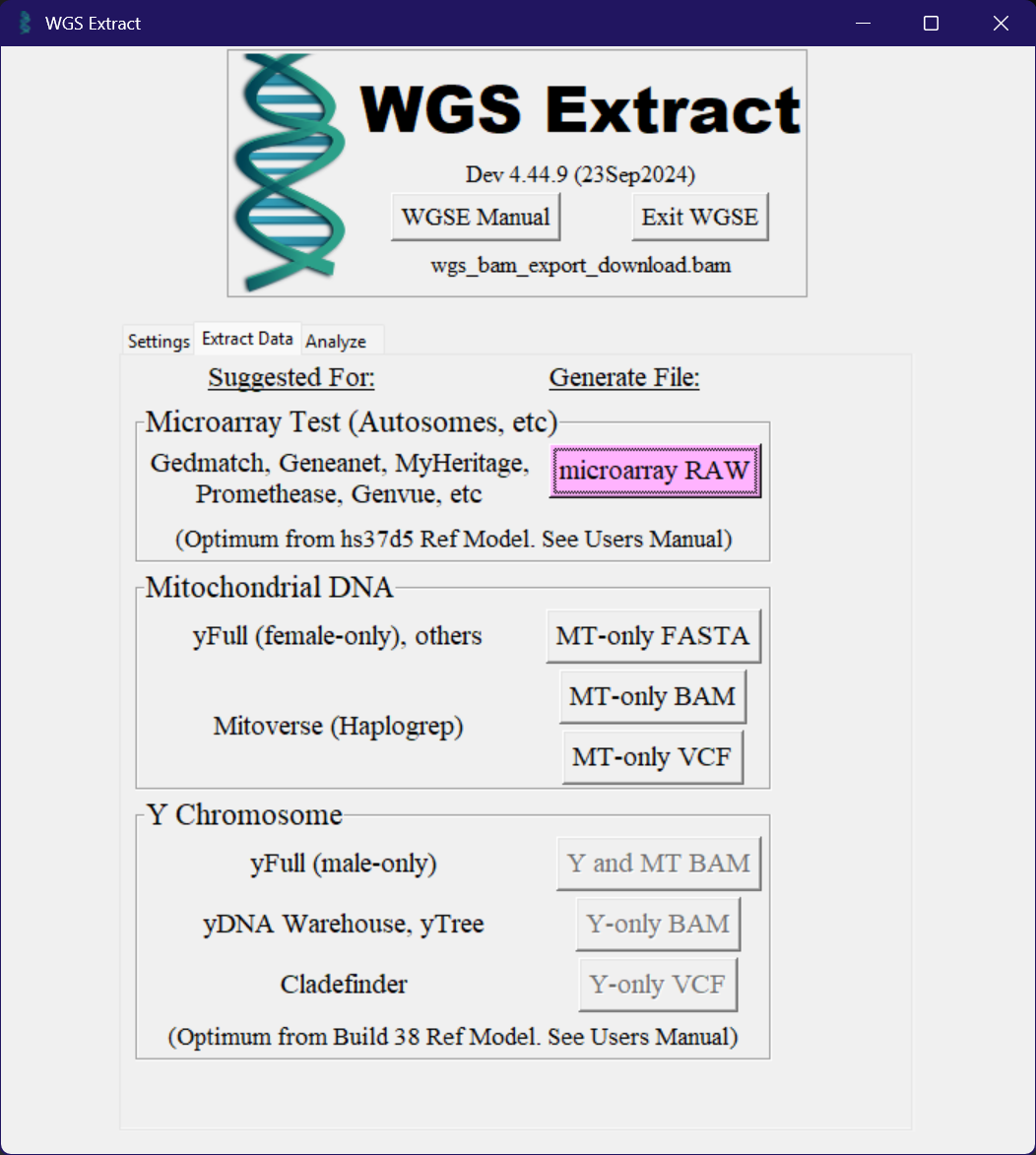

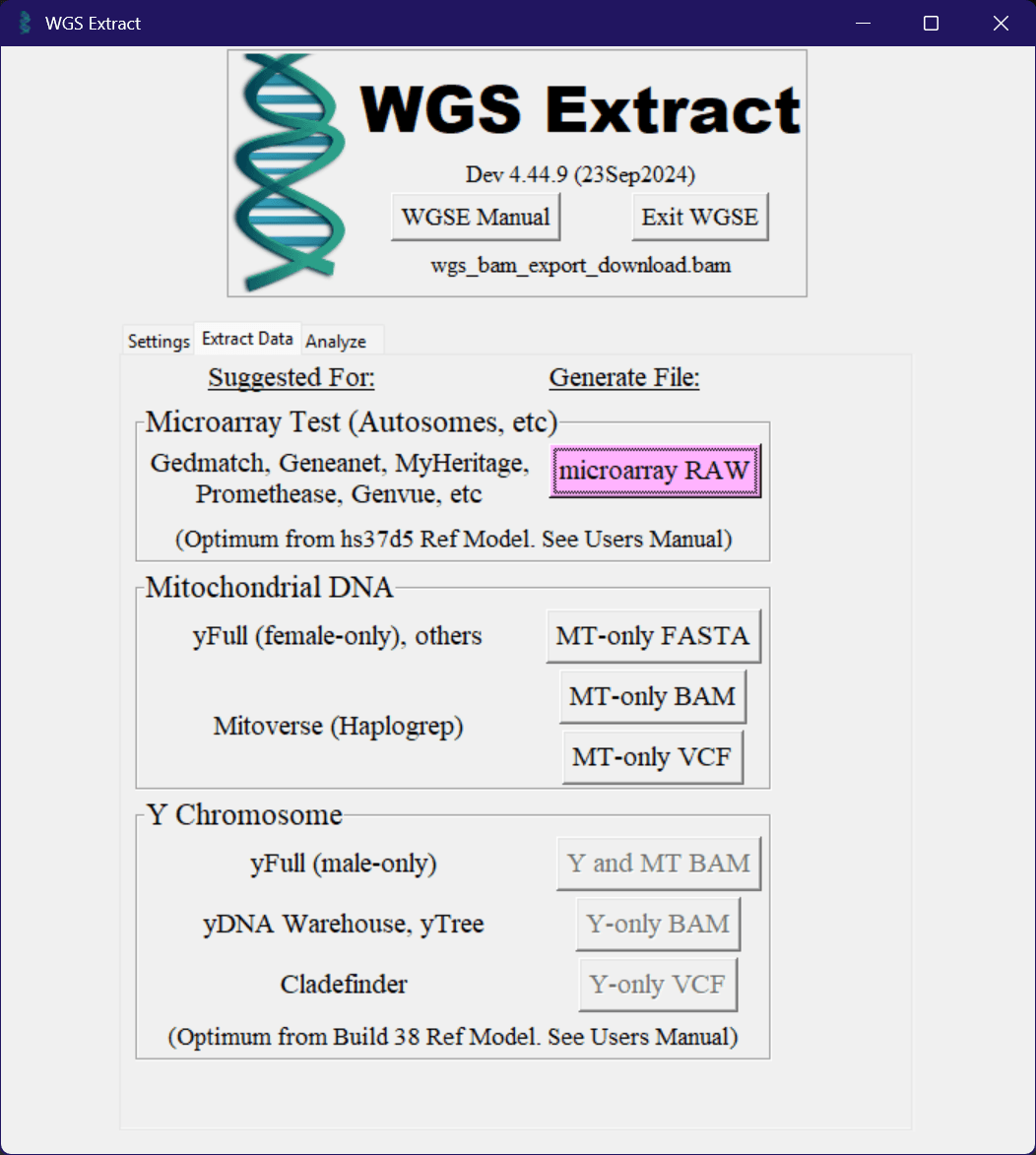

If you want to upload your data to other platforms, you can use the "Extract Data" tab to convert to a few common formats. As can be seen in the image below, there are a few buttons available to output to a few different platforms.
Image transcript / description
Visible text
WGS Extract
WGS Extract
Dev 4.44.9 (23Sep2024)
WGSE Manual
Exit WGSE
wgs_bam_export_download.bam
Settings
Extract Data
Analyze
Suggested For:
Generate File:
Microarray Test (Autosomes, etc)
Gedmatch, Geneanet, MyHeritage, Promethease, Genvue, etc
microarray RAW
(Optimum from hs37d5 Ref Model. See Users Manual)
Mitochondrial DNA
yFull (female-only), others
Mitoverse (Haplogrep)
MT-only FASTA
MT-only BAM
MT-only VCF
Y Chromosome
yFull (male-only)
yDNA Warehouse, yTree
Cladefinder
Y and MT BAM
Y-only BAM
Y-only VCF
(Optimum from Build 38 Ref Model. See Users Manual)Description
A desktop application window titled “WGS Extract” shows a large header panel with a teal DNA helix graphic on the left and the bold title “WGS Extract” on the right, followed by the version line and two rectangular buttons (“WGSE Manual” and “Exit WGSE”). Beneath the header, the loaded file name “wgs_bam_export_download.bam” is displayed. A tab row shows “Settings,” “Extract Data” (selected), and “Analyze.” The main content area is split into two columns labeled “Suggested For:” on the left and “Generate File:” on the right, with three boxed sections: Microarray Test, Mitochondrial DNA, and Y Chromosome. Each section lists suggested services on the left and corresponding output buttons on the right; the “microarray RAW” button is highlighted with a purple background, while other output buttons are light gray. The Y Chromosome section has greyed out buttons, indicating a disabled state.
These buttons will convert your data to the format required by the platform, and then save it to the output directory you selected earlier, but can take a while to run depending on the speed of your computer.
Data Privacy and Risks
As I covered in the Data Privacy section of the last article, it's extremely important to be aware of what you're actually uploading to these platforms. While these exports are generally a fraction of the data of your WGS data, they still contain a lot of very sensitive information about you. While I understand this is why most people actually order a WGS, I'd urge you to understand the potential risks and implications of uploading your genetic data to these platforms. It's important to understand that these risks are not just for you, but also anyone related to you. If a health insurer got ahold of genetic data and used it to deny coverage or increase premiums, they could do so for anyone that you're related to as well.
Conclusion
WGS Extract is a powerful tool for converting between data formats, getting some basic statistics about your genetic data, and exporting data to other platforms. The next article on this topic covers ancestry analysis in more detail, including some local admixture tools that can partially emulate the online services without having to upload your data to third parties.
